Nonwoven Filter Cloth for Efficient Kaolin Filtration

Understanding the Role of Filtration in Kaolin Processing

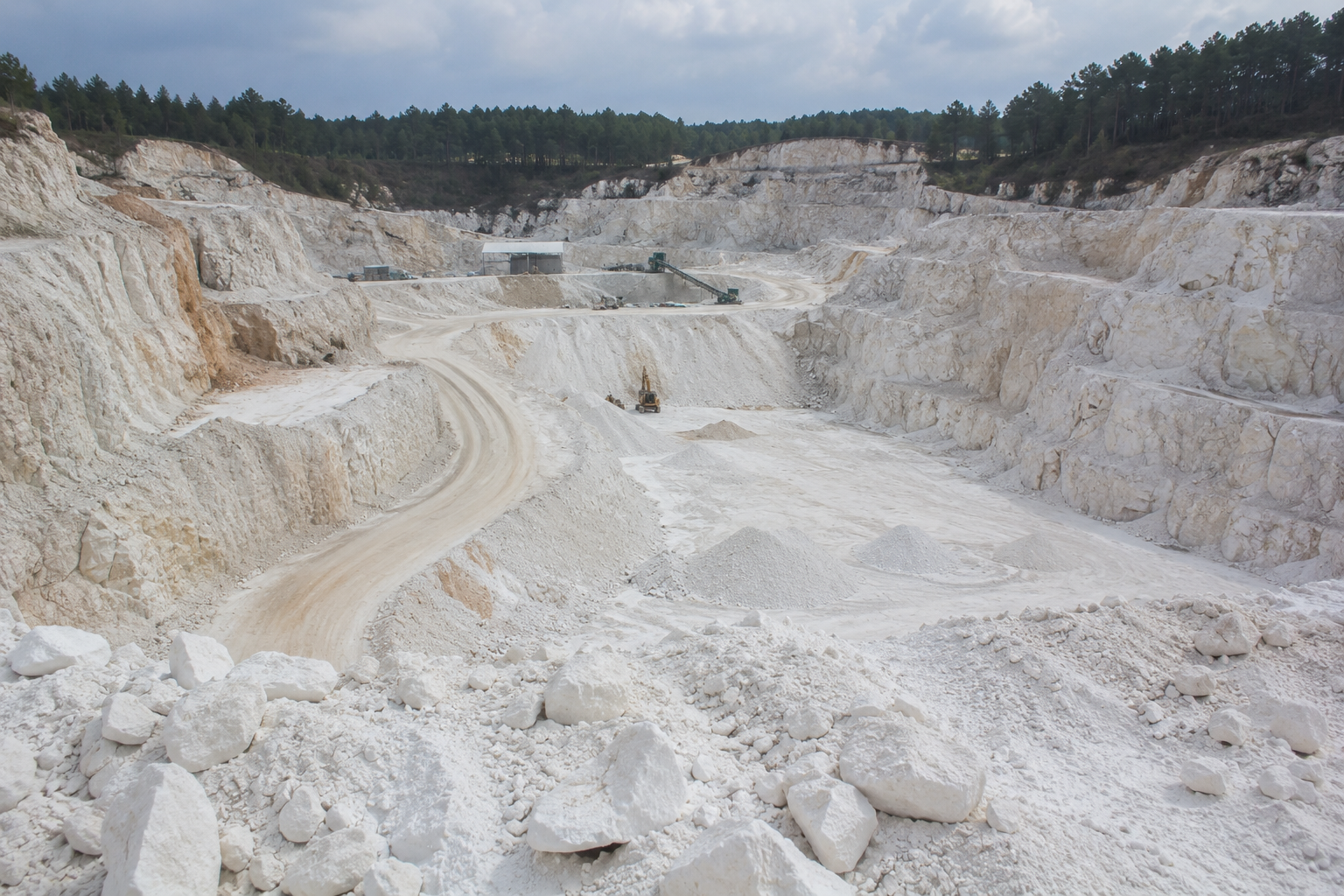

Kaolin filtration is a critical stage in producing high-quality kaolin products used in paints, ceramics, paper, and specialty applications. After mining and initial classification, kaolin slurry undergoes several wet processing steps such as washing, magnetic separation, and bleaching to improve brightness and purity.

The final filtration step removes excess water and fine impurities, helping achieve controlled moisture levels and consistent particle size distribution. This directly impacts the performance and quality of the final product. The filtered cake may also be further dried or calcined depending on application requirements.

Efficient filtration is therefore essential for maintaining product quality, improving plant throughput, and ensuring operational stability.

Challenges with Conventional Woven Filter Cloth in Kaolin Filtration

Using traditional woven filter cloth in filter press applications often leads to several process inefficiencies due to the fine and sticky nature of kaolin slurry.

1. Cloth Blinding and Clogging

Fine kaolin particles, often below 2 microns, penetrate deep into the woven structure. This reduces pore openness over time, leading to slower filtration rates, longer cycle times, and increased moisture in the filter cake.

2. Poor Cake Release

Tightly woven fabrics tend to hold onto the kaolin cake, causing sticking issues. This results in increased manual intervention, higher downtime, and potential damage to filter plates.

3. Abrasion and Fabric Damage

The presence of sand or hard particles can cause localized wear, especially at feed points and edges. This leads to pinholes, reduced filtration efficiency, and loss of product through turbid filtrate.

4. High Maintenance Requirements

Frequent washing, chemical cleaning, and cloth replacement increase operational costs. Incomplete cleaning further accelerates blinding, reducing cloth life and plant productivity.

Technical Factors Affecting Filtration Performance

Kaolin filtration performance is strongly influenced by slurry characteristics, particle size distribution, and operating conditions.

• High viscosity slurry reduces filtration rate and increases pressure across the cloth
• Ultrafine particles penetrate deeper into fabric structures, causing rapid clogging
• Chemical conditions require cloth materials with strong resistance to pH variations and process chemicals

While coated woven fabrics can improve particle retention, they often come with higher costs and may still struggle with long-term blinding in continuous operations.

Why Nonwoven Filter Cloth is Ideal for Kaolin Dewatering

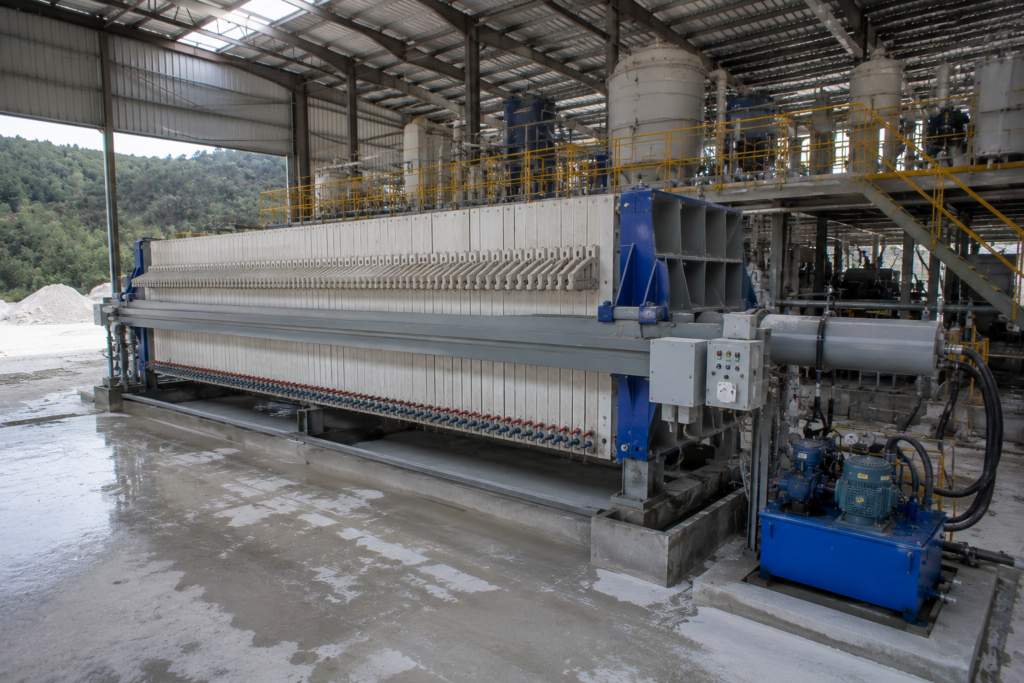

Nonwoven filter cloth offers a more effective solution for kaolin filtration, especially in filter press operations handling fine particle slurries.

1. Superior Filtration Efficiency and Clarity

Nonwoven fabrics feature a three-dimensional fiber structure that allows depth filtration rather than surface filtration. This improves solids capture while maintaining good filtrate clarity and flow.

2. Reduced Blinding and Longer Service Life

The random fiber arrangement prevents particles from clogging uniform pore channels. This helps maintain consistent filtration performance over multiple cycles.

3. Improved Cake Release

The smoother surface and flexible structure of nonwoven cloth enable easier cake discharge. This reduces downtime and minimizes manual cleaning.

4. Chemical Compatibility

Nonwoven polypropylene or polyester cloths perform well under neutral to slightly acidic or alkaline conditions, making them suitable for most kaolin processing environments.

5. Lower Maintenance and Operating Costs

Reduced cleaning frequency, longer cloth life, and stable performance contribute to lower overall operational costs.

Clear Edge Expertise in Kaolin Filtration Solutions

Clear Edge applies its Material Science approach to design application-specific filter cloth solutions tailored to kaolin and mineral processing requirements.

Customized Filtration Media Design

Filter cloth selection is optimized based on slurry characteristics, particle size, temperature, and chemical conditions to ensure optimal filtration efficiency and durability.

Process Optimization Support

Clear Edge works closely with plant teams to improve throughput, filtrate quality, and cake dryness across filter presses and other filtration systems.

Global Technical Assistance

With a dedicated TechApps team, Clear Edge provides on-site support, troubleshooting, and performance optimization to resolve issues like blinding and poor cake release.

Proven Industry Performance

In demanding applications such as alumina and red mud filtration, Clear Edge solutions have delivered improved flow rates, better clarity, and longer cloth life, resulting in reduced downtime and enhanced plant efficiency.

Key Takeaways

• Nonwoven filter cloth improves filtration efficiency in kaolin processing
• Depth filtration structure reduces blinding and increases cloth life
• Better cake release minimizes downtime and maintenance efforts
• Optimized filtration solutions enhance plant productivity and product quality
